Traileze Trailers
TRAIL-EZE Trailers provides the rental industry with hydraulic tail, detachable gooseneck and slide axle (also referred to as traveling axle) trailers designed for delivery and transport of multiple types of equipment. The hydraulic tail boasts one of the best load angles in the industry.

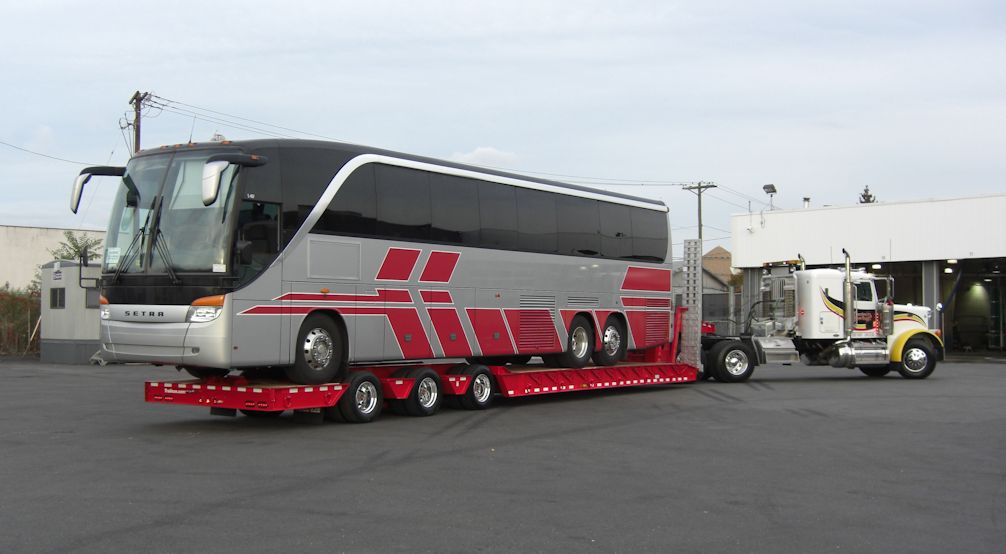

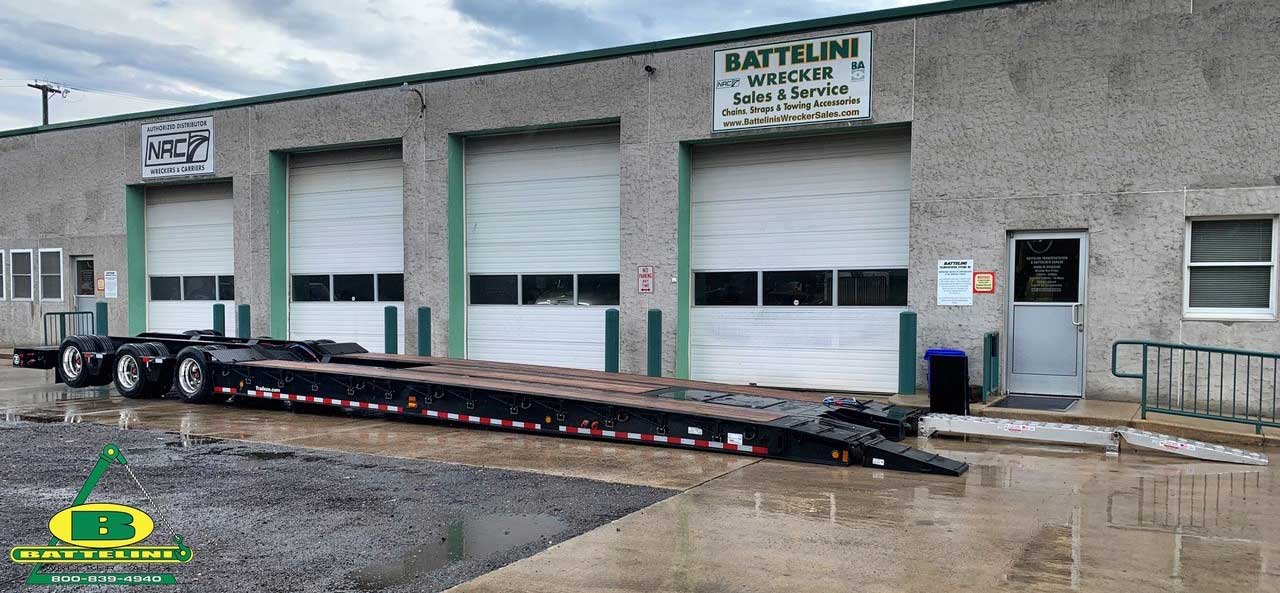

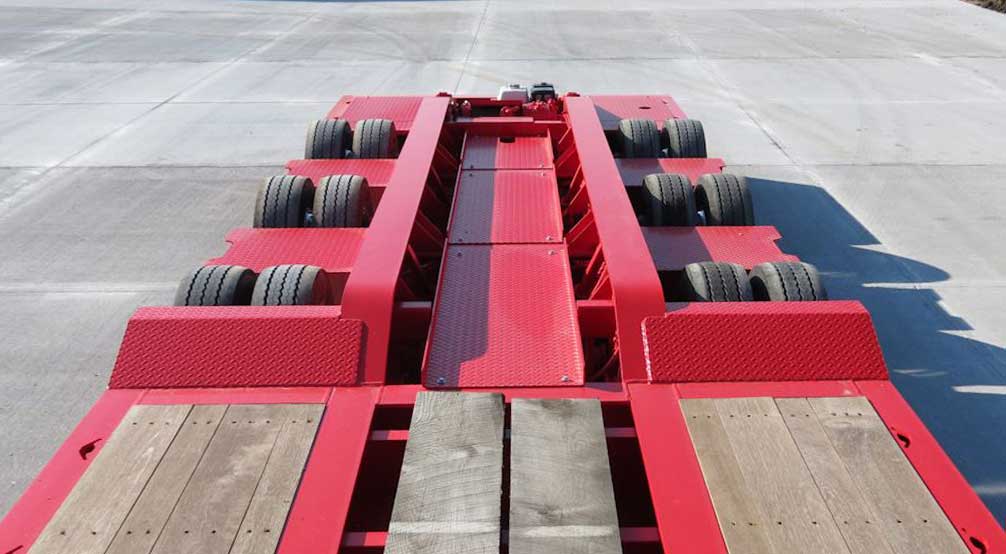

TE100DGBUS
With winch options on the neck and the rear of the trailer, this trailer also doubles as a recovery trailer. Cranes, dump trucks, fire trucks, excavators, dozers and buses are just a few of the different types of equipment the TE80DGBUS and TE100DGBUS are capable of transporting.
DIMENSIONS
- CAPACITY : 50 Ton – 100,000 Lb concentrated capacity in 16′
- OVERALL LENGTH : 53′
- MAIN DECK LENGTH : 3 Axles = 22′-6″
- DECK HEIGHT : 22″ (Loaded)
- GROUND CLEARANCE : 6″ (Loaded)
FEATURES
- DECK : 2″ Oak decking (or Apitong available). 4 Beam main deck design.
- RAMPS : 2-Piece aluminum front ramps for bus loading. Standard steel flip over ramps for conventional equipment loading included with trailer.
- AXLES : (3) 25,000 Lb with oil seal hubs
- BRAKES : 12 1/4″ x 7 1/2″ Air with auto slack adjusters, ABS (2S/1M) and spring park brakes.
- WHEELS : 6.75 x 17.5 Steel disc pilot mounted
- TIRES : 235/75R x 17.5 Radials rated @ 5,675 lbs each
- SUSPENSION : Air ride with manual raise and lower
- TIE DOWNS : D-ring tie downs
- ELECTRICAL : ICC D.O.T. Standard sealed beam light system with mid-ship blinker, LED’s available.
- WINCH : 20,000 Lb hydraulic winch mounted either at rear of trailer as low as possible or in the rear of the gooseneck. Winch cable supplied with winch.

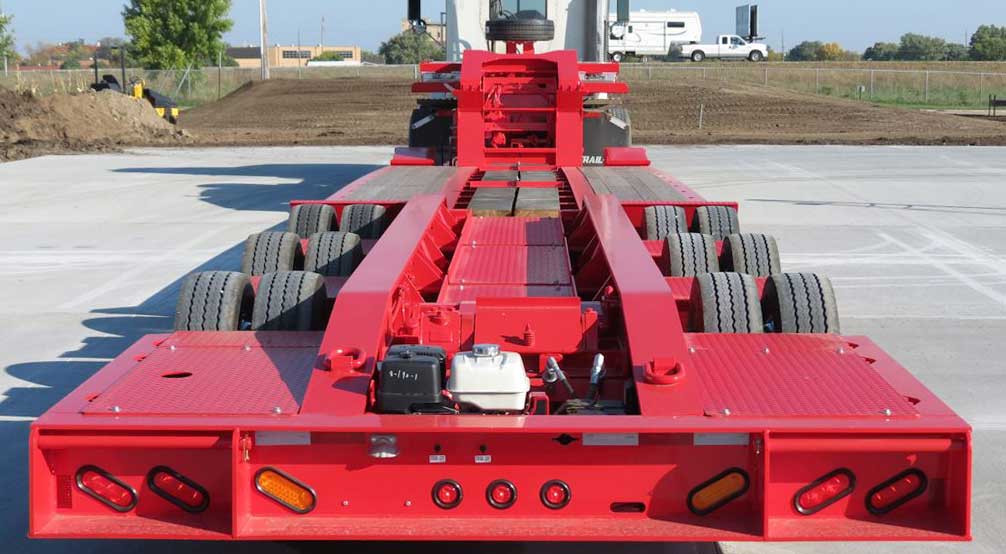

- HYDRAULICS : Trailer can be set up to run off of truck PTO or off a 13HP Honda self-contained engine.
- PAINT : Trailer sandblasted, primed and painted
- WARRANTY : Limited 5 Year Major Structural Warranty
- OPTIONS : Many options available

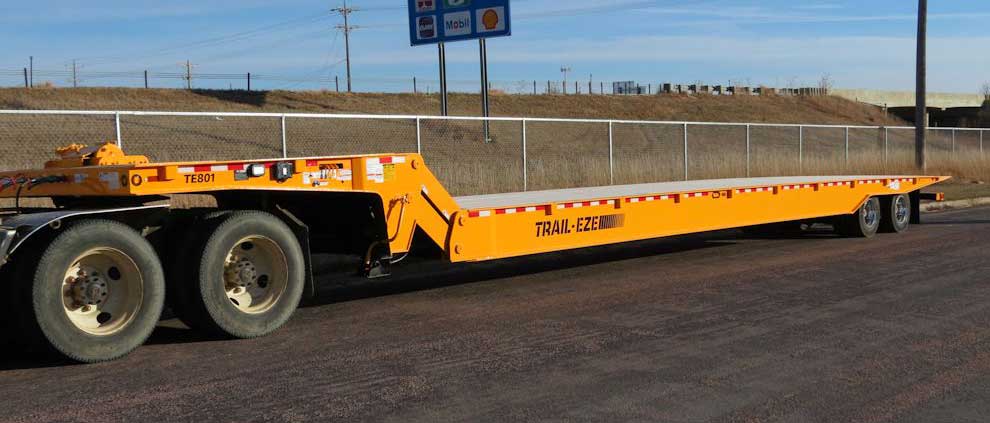

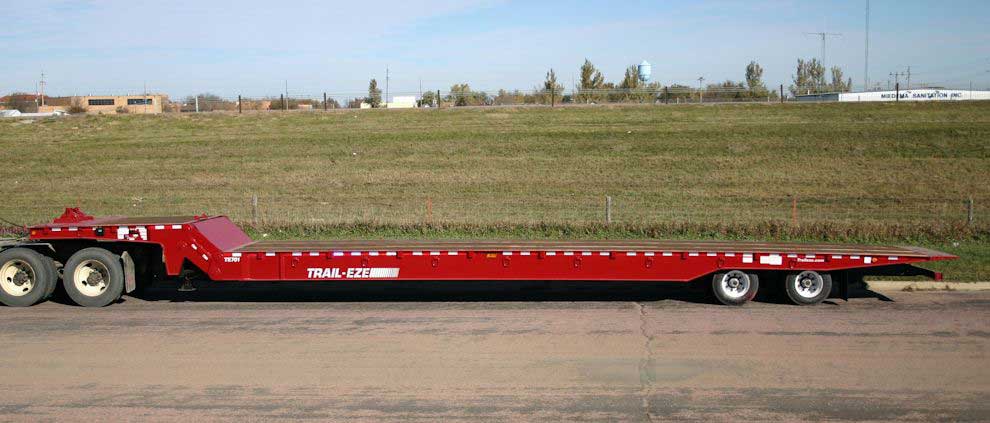

TE801
With standard features that set us apart from the competition and endless option choices, TRAIL-EZE manufactures one of the industries leading sliding axle trailers. The way our bed tilts and by utilizing slider pads, instead of rollers, for moving the axles forward and back, TRAIL-EZE cuts your maintenance times while increasing your safety. We take our time to make sure we know what type of equipment you are going to haul so you get the right trailer for the job.
DIMENSIONS
- CAPACITY : TE701 – 70,000 Lbs distributed / 40,000 Lbs concentrated in 10′
- CAPACITY : TE801 – 80,000 Lbs distributed / 50,000 Lbs concentrated in 10′
- OVERALL LENGTH : 40′ to 53′
- MAIN BED LENGTH : 28′-5″ to 41′-5″
- UPPER DECK LENGTH : 112″
- WIDTH : 8′-6″
- DECK HEIGHT : 37″ (Loaded)
- SWING CLEARANCE : 80″
- KING PIN SETTING : 18″
- APPROACH RAMP : Steel knife edge
- AXLE SLIDE ON 44’ TO 47’ : 13′
- AXLE SLIDE ON 48’ TO 53’ : 15′
FEATURES
- FRAME : All high tensile steel I-beams. 4 Beam design.
- DECK : 1 1/2″ Oak decking with crossmembers on 12″ centers
- LOAD ANGLE : 6 3/4 Degrees to 8 Degrees
- AXLES : (2) 22,500 Lb
- BRAKES : 12 1/4″ x 7 1/2″ S-Cam air brakes. ABS with auto slack adjusters and spring brakes on all axles.
- WHEELS : (8) 6.75 x 17.5 10-Hole steel disc
- TIRES : (8) 235/75R x 17.5 Radials
- LANDING GEAR : 2-Speed landing gear
- SUSPENSION : Air ride
- TIE DOWNS : Stakepockets on 4′ centers with (4) Gotcha’s across the rear
- WINCH : 12,000 Lb Hydraulic with cord type remote control
- ELECTRICAL : ICC D.O.T. Standard sealed light system with mid-ship turn signal
- PAINT : Trailer sandblasted, primed and painted
- WARRANTY : Limited 5 Year Major Structural Warranty

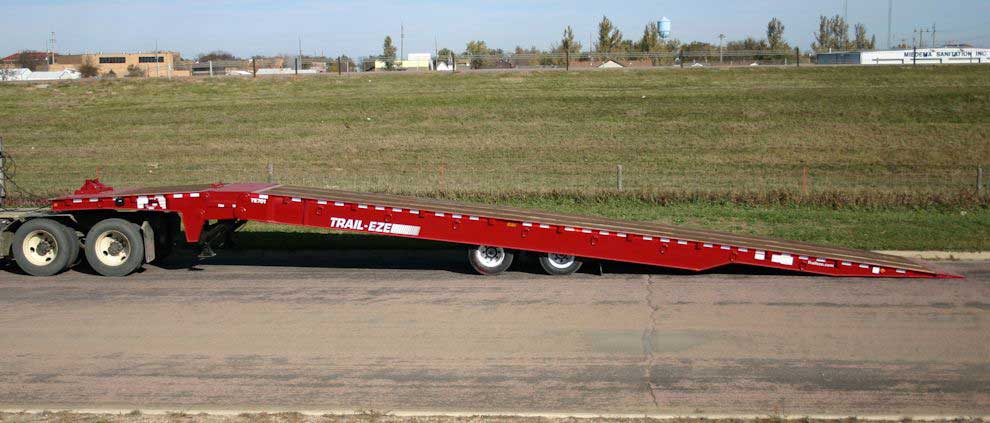

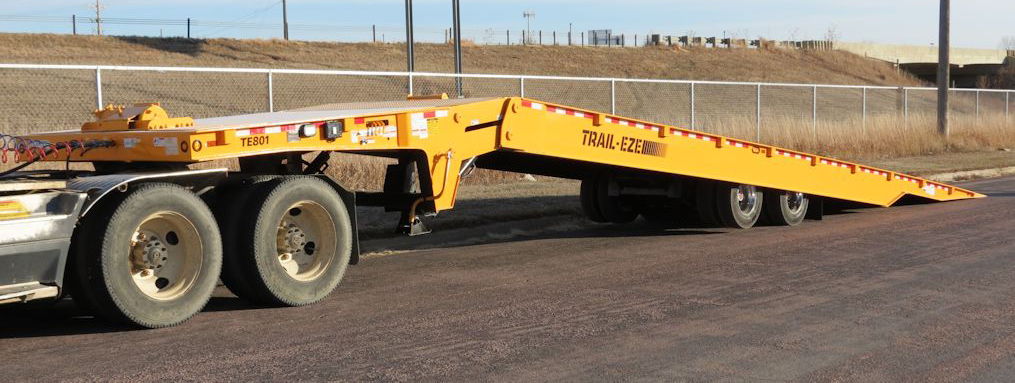

- OPERATION : The main bed is tilted hydraulically and the hinged slope forms a straight ramp to the upper deck which remains flat on the fifth-wheel at all times.
