NRC

NRC Carriers

Get ready for the action. NRC car carriers are strong, dependable and versatile, so you won’t miss any opportunity, ever. Guaranteed!

Learn More at nrc-industries.com

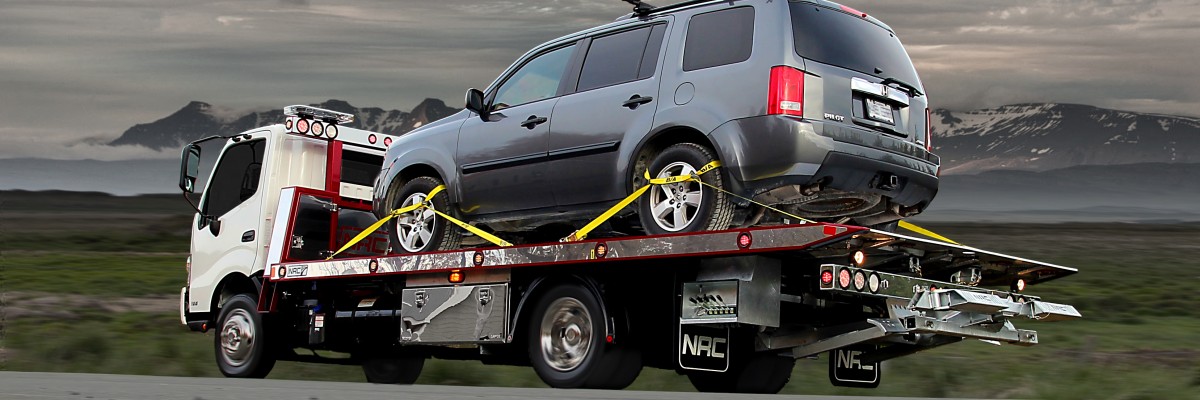

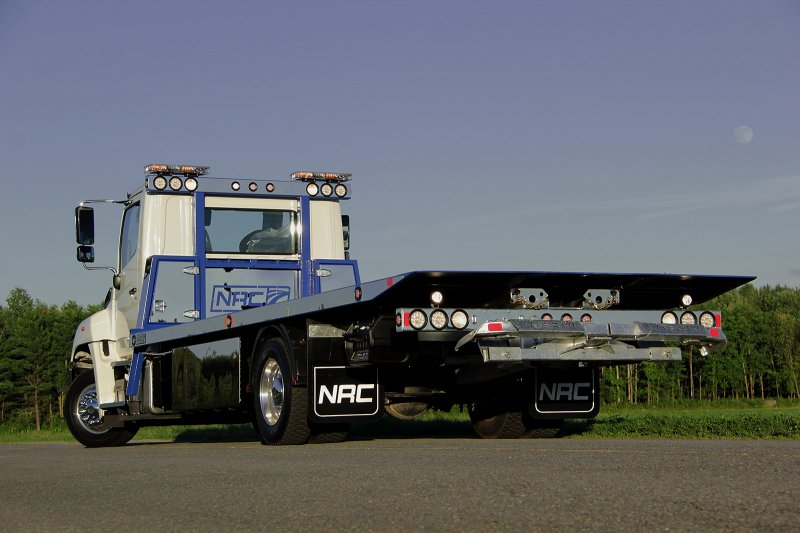

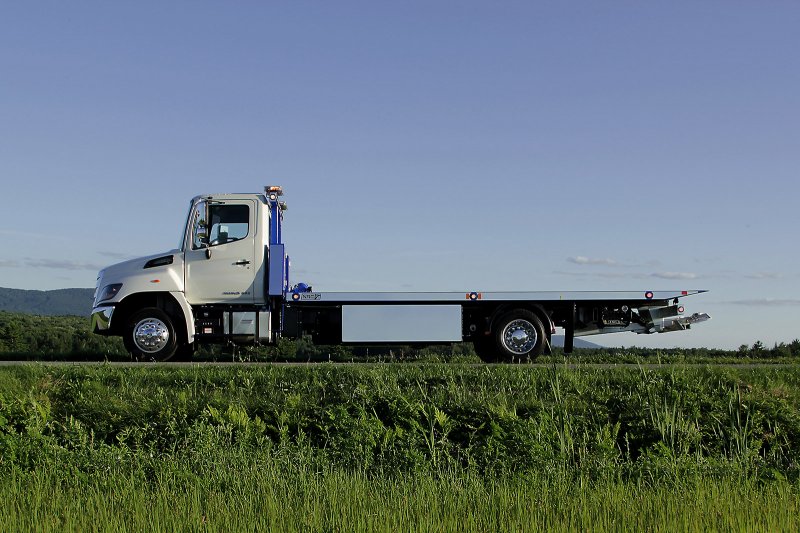

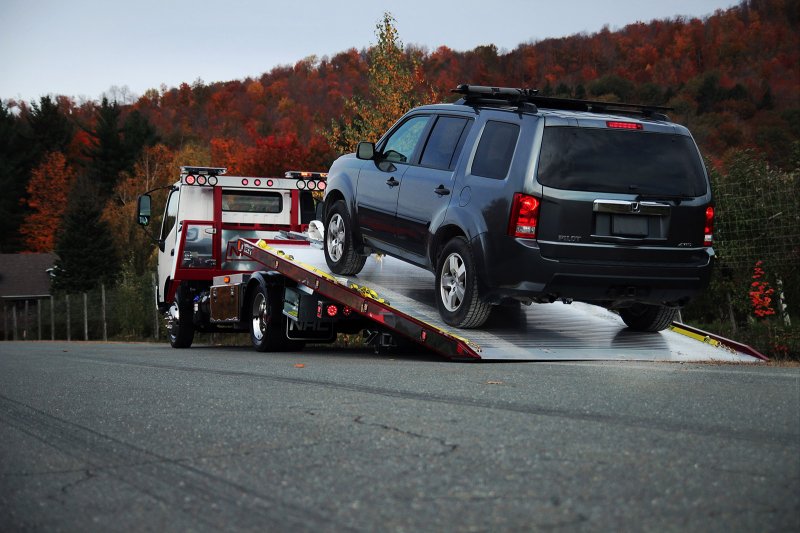

10TB

zzz

Small vehicles, but a huge amount of calls? Take the bull by the horns and take on even bigger jobs with confidence. With the 10TB Series, rest assured you are backed by a compact unit built to quality standards for high performance excellence.

SPECIFICATIONS

  • Nominal deck rating : 10,000 lbs [4 500 kg] (Evenly Distributed Load)
  • Tow bar lift rating: 5 000 [email protected]” / 1 800 [email protected]” [2 275 [email protected] m / 820 [email protected],2 m]
  • Tow rating: 9 000 lbs [4 000 kg]
  • Deck length: 18′-21.5′
  • Operating pressure: 3000 psi [210 Bars]
  • Heavy Duty Quickswap
  • Minimum wheelbase : 250″
  • Double frame recommended
  • Reach fully retracted : 73″
  • Reach fully extended : 111¾”
  • Structural rating fully retracted : 35,000 lbs
  • Structural rating fully extended : 15,000 lbs
  • Super Heavy Duty Quickswap
  • Minimum wheelbase : 275″
  • Double frame recommended
  • Reach fully retracted : 86″
  • Reach fully extended : 135¾”
  • Structural rating fully retracted : 50,000 lbs
  • Structural rating fully extended : 20,000 lbs

MINIMUM FRAME REQUIREMENTS

  • Cab to axle: 120”-160” [3 m-4 m]
  • Frame cut: 155”- 197” [4 m – 5 m]
  • Min. frame resisting bending moment : 900,000 lbs*in / rail
zzz
zzz
zzz

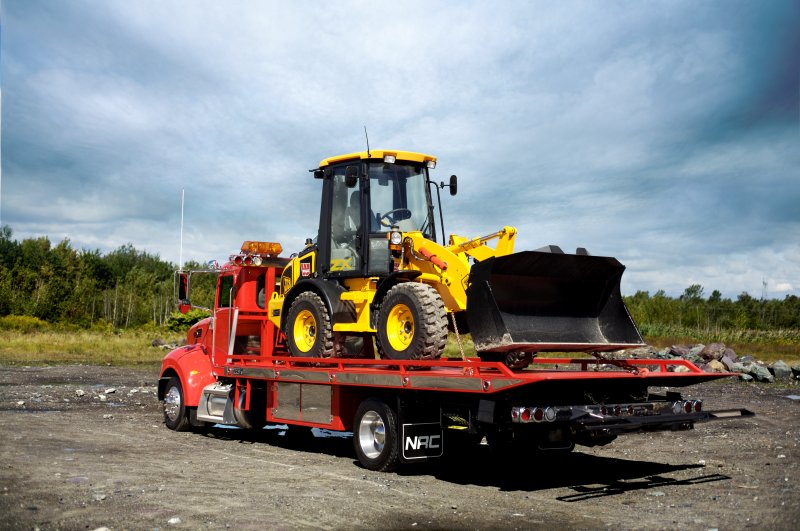

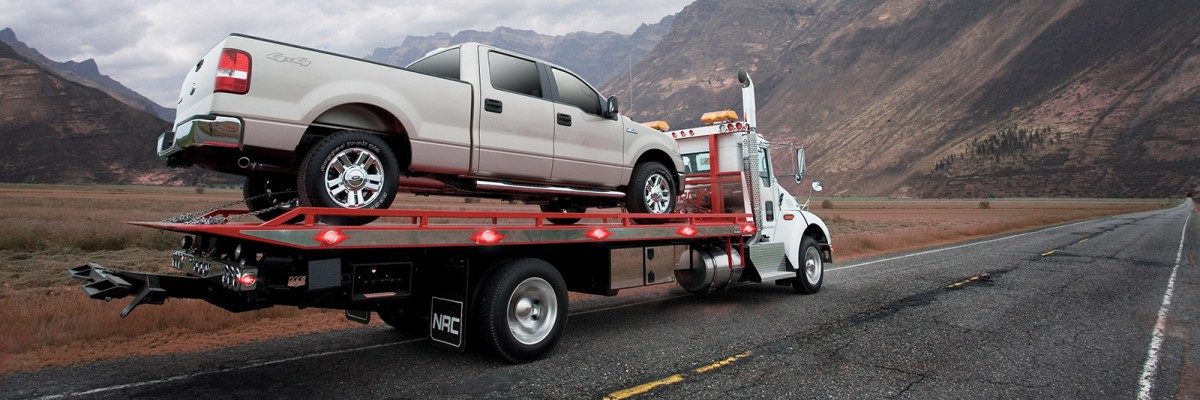

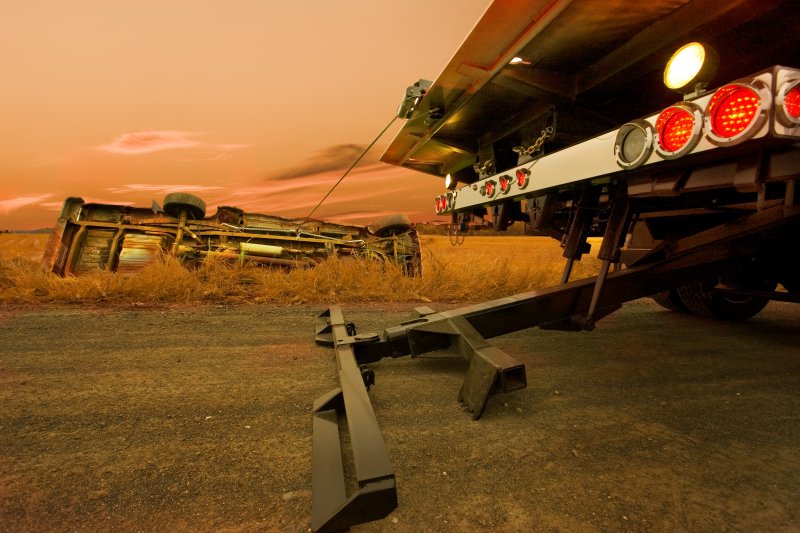

20TB

zzz

A little bit of everything makes for a lot overall. With the 20TB Series, everything means all you can think of and then some more…all in a day’s work.

SPECIFICATIONS

  • Nominal deck rating : 20,000 lbs [9,000 kg] (Evenly Distributed Load)
  • Tow bar lift rating: 8,000 [email protected]” / 3,000 [email protected]” [3,750 [email protected] m / 1,250 [email protected],2 m]
  • Tow rating: 15,000 lbs [6,750 kg]
  • Deck length: 20′-30′
  • Operating pressure: 3,000 psi [210 Bars]

MINIMUM FRAME REQUIREMENTS

  • Cab to axle: 144”-244” [3,7 m-6,2 m]
  • Frame cut: 177”- 307” [4,4 m – 7,8 m]
  • Min. frame resisting bending moment 21′-25′: 1,250,000 lbs*in / rail
  • Min. frame resisting bending moment: >25′: 1,925,000 lbs*in /rail
  • Tandem
  • Cab to last axle: 196”-274” [4,9 m-6,9 m]
  • Frame cut: 229”-307” [5,8 m-7,8 m]
  • Min. frame resisting bending moment : 2,250,000 lbs*in / rail
zzz
zzz
zzz

20TB DD

zzz

What if the carriers from the 20TB Series allowed you do even more? With its 8,000 lbs [3,600 kg) upper deck, the 20TB-DD will allow you to haul up to 4 cars at a time.

SPECIFICATIONS

  • Nominal lower deck rating : 20,000 lbs [9 000 kg] (Evenly Distributed Load)
  • Nominal upper deck rating : 8,000 lbs [3 600 kg] (Evenly Distributed Load)
  • Tow bar lift rating: 8 000 [email protected]” / 3 000 [email protected]” [3 750 [email protected] / 1 250 [email protected],2m]
  • Tow rating: 15 000 lbs [6 750kg]
  • Deck length: 23′-30′
  • Operating pressure: 3000 psi [210 Bars]

MINIMUM FRAME REQUIREMENTS

  • Cab to axle: 144”-244” [3,7 m-6,2 m]
  • Frame cut: 177”- 307” [4,4 m – 7,8 m]
  • Min. frame resisting bending moment 21′-25′: 1,250,000 lbs*in / rail
  • Min. frame resisting bending moment: >25′: 2,125,000 lbs*in /rail
  • Tandem
  • Cab to last axle: 196”-274” [4,9 m-6,9 m]
  • Frame cut: 229”-307” [5,8 m-7,8 m]
  • Min. frame resisting bending moment : 2,500,000 lb*in / rail
zzz
zzz
zzz

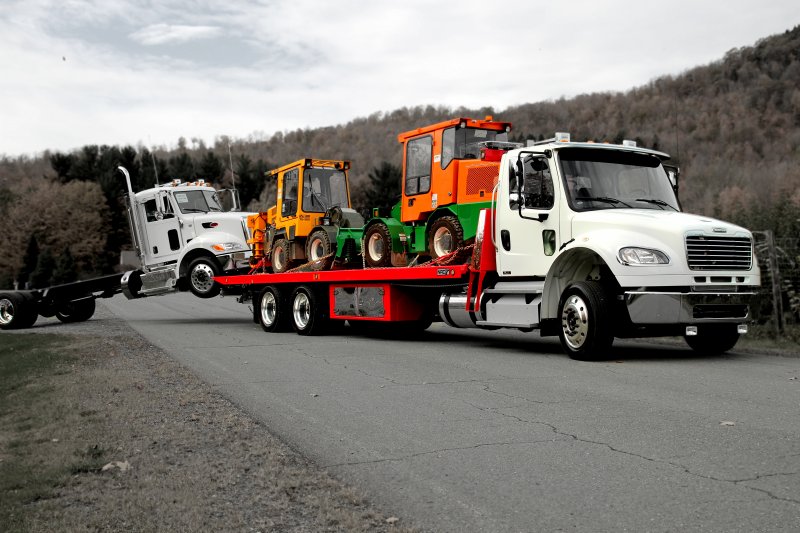

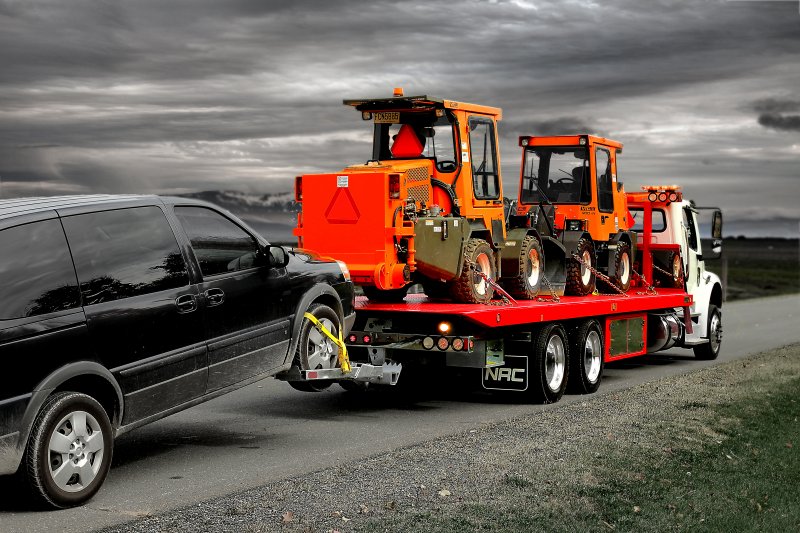

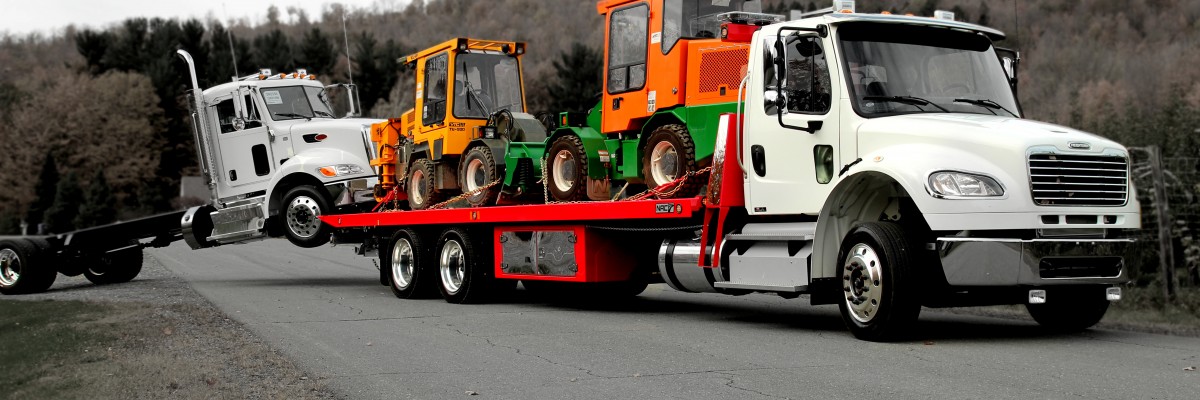

30TB

zzz

Because they count on you, you rely on the 30TB Series. Don’t let your heavy duty customers shop around for their light duty needs: get the carrier that does everything right. Load up heavy machinery and tow a car, all at the same time, if need be. Get the most from every mile you travel.

SPECIFICATIONS

  • Nominal deck rating : 30,000 lbs [13 500 kg] (Evenly Distributed Load)
  • Tow bar lift rating: 17,500 [email protected]” / 6,500 [email protected]” [8,000 [email protected] m / 3,000 [email protected],5 m]
  • Tow rating: 35,000 lbs [16,000 kg]
  • Deck length: 24′-30′
  • Operating pressure: 3000 psi [210 Bars]

MINIMUM FRAME REQUIREMENTS

  • Cab to last axle: 196”-274” [4,9 m-6,9 m]
  • Frame cut: 229”-307” [5,8 m-7,8 m]
  • Min. frame resisting bending moment : 2,500,000 lbs*in / rail
zzz
zzz
zzz

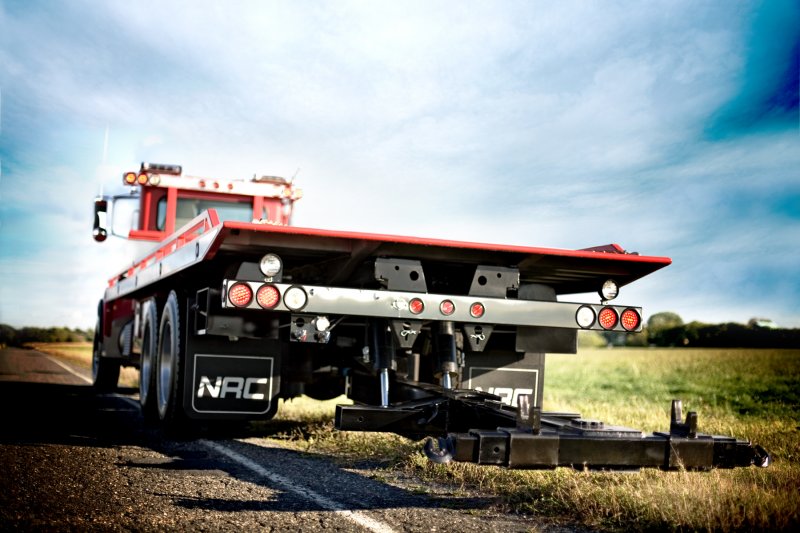

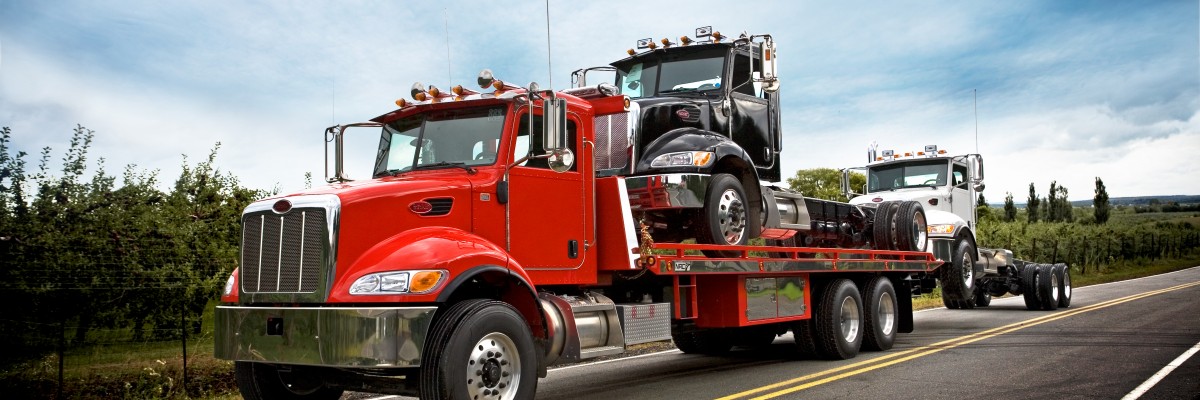

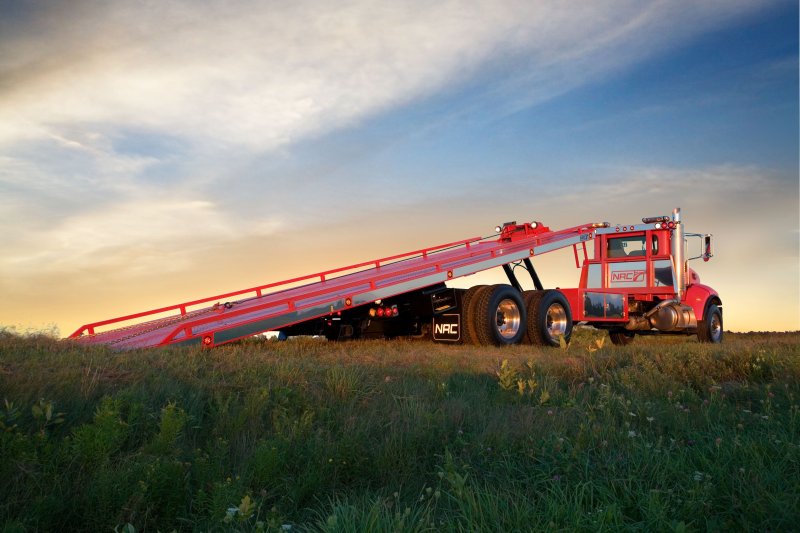

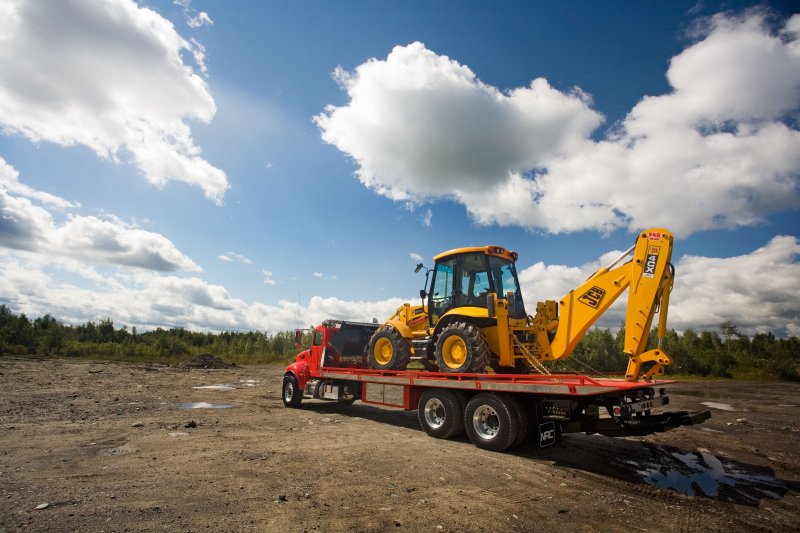

40TB

zzz

Big loads, extreme conditions, tight schedules? When you own or operate a 40TB Series carrier, you impress the most demanding customers. Be the only one on their call list.

SPECIFICATIONS

  • Nominal deck rating : 40,000 lbs [18,000 kg] (Evenly Distributed Load)
  • Tow bar lift rating: 20,000 [email protected]” / 10,000 [email protected]” [9,000 [email protected] m / 4,500 [email protected],5m]
  • Tow rating: 50,000lbs [22,750 kg]
  • Deck length: 24′-30′
  • Operating pressure: 3,000psi [210 Bars]

MINIMUM FRAME REQUIREMENTS

  • Nominal deck rating : 40,000 lbs [18,000 kg] (Evenly Distributed Load)
  • Tow bar lift rating: 20,000 [email protected]” / 10,000 [email protected]” [9,000 [email protected] m / 4,500 [email protected],5m]
  • Tow rating: 50,000lbs [22,750 kg]
  • Deck length: 24′-30′
  • Operating pressure: 3,000psi [210 Bars]
